Product Details

We have over 10 years of experience in designing and selling auto diagnostic tools.

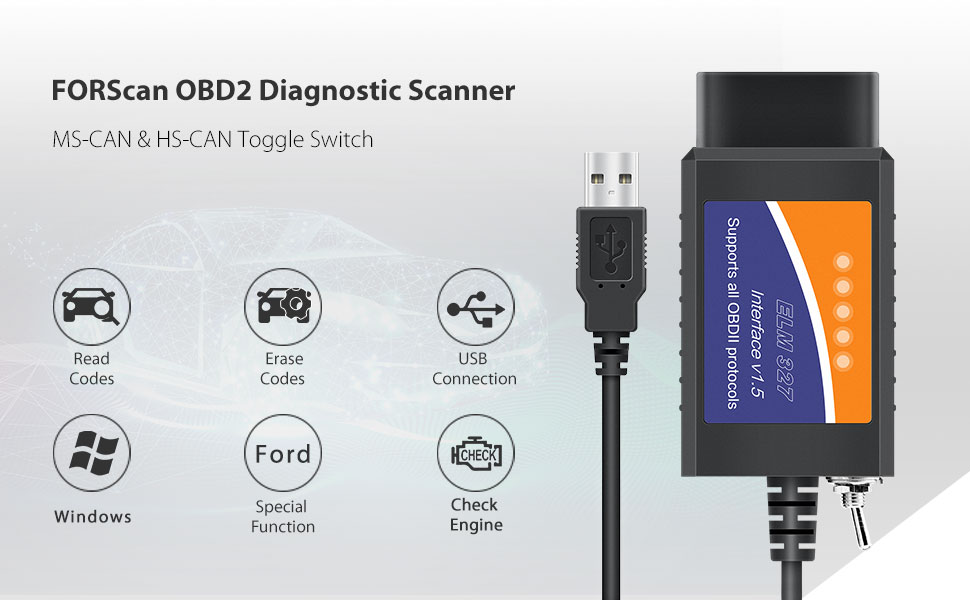

FORScan ELM327 OBD2 USB Adapter for Windows
$20.95 USD
FORScan OBD II Adapter is a vehicle code reader, ELM327 scanner, clear check engine light, FORScan and diagnostic scan tool. OBDii adapter with the reliable advantage of USB cable connection and V1.5 version hardware avoids data corruption and dropped packets. Toggle MS-CAN HS-CAN switch can run rapidly at max 500 kbit per second, achieving pro-level check engine light programming and coding.



Please install the USB DRIVER & FORScan Softwares before connecting the car, if you lose the software download channel, Please ask us for new software download channels.

Instructions for Use

1. After receiving the product, connect the product USB interface to the computer (only applicable to windows systems).

2. login to the website(sw.forscan.net) on the manual and download USB driver [CH340] & FORScan software(PC Software-FORScan).

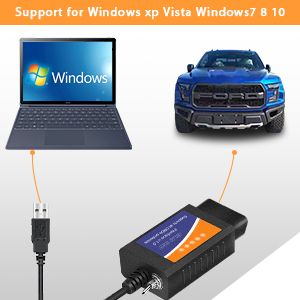

3.When in use, the 16-pin interface is connected to the car’s OBD2 interface, and the USB is connected to the computer.

4.Some FORScan functions require an extended licence, you can get free extended licence 2 months trial from forscan.org.

Note:

If you are using the win10 system and the adapter cannot work, please follow the steps below to make the Forscan software compatible with the win7 system.

Step 1: Close Both Antivirus And Firewall-Right-Click The Forscan Icon on Desktop-Choose Properties-Choose Compatibility-Choose "Win7", Then Save.

Step 2: Right-Click Forscan Icon Again-Choose "Run As Administrator"-Connect The Cable To Laptop And Car Ignition on To Test.


FORScan ELM327 is a Mini basic diagnostic code reader,The major function of this scanner is read /Erase fault codes support 16 PIN OBD2 Vehicle's ,easy to use and it will be a good partner for your vehicle's.


Ford OBD2 scanner Functions

Read/erase fault codes from ALL modules (such as Focus, Mondeo/Fusion, Kuga, S-Max, C-Max, Transit, Ranger, F150 etc )

Access modules on both HS-CAN and MS-CAN mode

Read vehicle configuration, actuator tests

Live Data: Air Flow Rate, Engine RPM, Vehicle Speed, Intake Air Temperature

Injector coding, programming, coding, adaptations

Service procedures

Force DPF regeneration

Oxygen Sensors

Fuel System status

Long /Short Term Fuel Trim


Supported Modules

HS CAN: PCM TCM APIM DCDC PAM HCM and many others

MS CAN: BCMII SODR SODL FCIM TRM RGTM RTM PDM DDM HSWM GPSM DSM

HS CAN2: FDSM ABS RCM PSCM SCCM GWM IPMA

Simple to USE

1.Download USB driver [CH340] & FORScan software from sw.forscan.net

2.Connect USB scan tool with laptop and car.

3.Diagnose the vehicle.

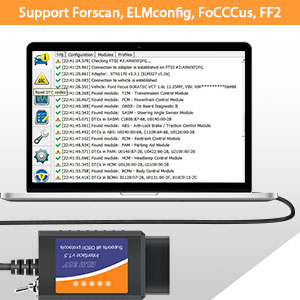

Supported Software

FORScan (The ultimate hidden scan tool software. You can access the Global Window feature, Bambi Mod, reverse tilt mirrors,

tire size correction, Perpendicular Park, Secure Idle, 5 turn signal flash, heated steering wheel, disabled double horn honk,

disabled door ajar chime, and many more! )

ELMconfig

FoCCCus

FF2

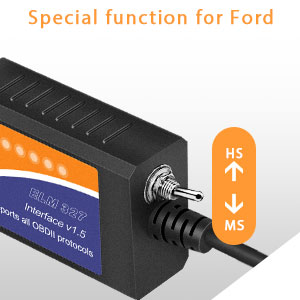

Modified interface-Special for Ford/Mazda

ELM327 USB scan tool supports HS CAN from the stock, because for Ford HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
