We have over 10 years of experience in designing and selling auto diagnostic tools.

EL-50448 TPMS Relearn Tool for GM
$9.99 USD
Perfect automotive tire pressure monitor sensor reset tool for GM Vehicles which equipped with 315/433 MHZ tire sensor. can easily reset tire sensor within 1-2 Mins after tire rotations or changing a new tire, replacing the tire pressure sensor or when tire pressure indicator light ON, to turn off the TPMS light.



TPMS Relearn Tool works on most GM series vehicles (Compatible with Opel, Buick, Cadillac, GMC, Chevy) manufactured for the North American market.


Applicable Models

Factory Tested Models

l2006-2019: For almost all GM Series vehicles: Buick, Cadillac, Chevy, GMC,Opel

l2010: Acadia, Enclave. OUTLOOK, Traverse (VIN R/V) ,Allure, LaCrosse (VIN G), Antara. Captiva, Terrain, Winstorm, Avalanche. Escalade, Suburban, etc.

l2011: Astra,Avalanche. Escalade, Suburban, Tahoe, Yukon (VIN C/K),Aveo, Barina (VIN S/T), Buick Excelle, Buick Regal (China), Camaro (VIN F), Canyon, etc.

l2012: Camaro (VIN F), Canyon, Colorado (VIN S/T), Caprice PPV, Captiva Sport, Chevrolet Cobalt (2809), Colorado (Other IO), S10 (South America), Corvette.etc.

l2013: Barina(5376837), Camaro (VIN F) (3106), Caprice PPV (3105), Captiva Sport (3101), Cobalt (3107), Colorado, Colorado 7, S10, Trailblazer (5392270),Combo-D, Corvette (VIN Y) (3104).etc.

Customer Tested Models

l2006-2013: Corvette, Nissan Frontier, Cadillac Escalade , GMC Acadia, GMC Yukon Denali, etc.,

l2014-2015: Acadia, Buick Enclave, Buick Encore, Buick Lacrosse, Cadillac ATS, Cadillac CTS , etc.,

l2016-2018: Acadia, Buick, Buick cascada, Cadillac XTS, Chevrolet Express 3500, Chevrolet SS Sedan, etc.


When do u need the TPMS Reset Tool E508 ?

  1. After New TPMS sensors installed,let air out or add air into the tire but couldn't make the system recognize new sensors.

  2. Do tire rotation or replace tires but don't have a quick and easy way to let ECU relearn new tire information.

  3. Low tire pressure or leakage /replacement or installation of tire pressure monitoring equipment / tire replacement, sensor damage, etc. After those problems solved, TPMS needs to be reset.

  4. When tire pressure indicator light ON, the maintenance performed, the tire pressure needs to be reset to turn off the TPMS light.


How to use TPMS Relearn Tool ?

  1. Set the car in TPMS learning mode

  2. Start relearn process from front left tire

  3. Point antenna on correct position, pressing or releasing power button once the speaker chirped move to the next tire

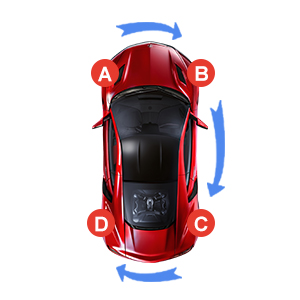

  4. Follow the order to TPMS sensor,front left, front right , rear left, rear right. If you have some question for operate.(Please install the 9V battery before use).

How to get into TPMS Learning Mode ?

Make the gear in P position.

Use cruise to choose TPMS re-learn mode in the dashboard settings.

Horn will ring twice and the TPMS indicator flashes, then the learning mode has been successfully entered.

Before tire pressure monitoring system works normally properly, the body control module will record ID information of each position in the tire pressure sensor.


Attention

  1. Please find a good quality 9V battery

  2. It works for light trucks but not for heavy trucks more than 4 tires truck

  3. When using TPMS Relearn Tool, please make sure your antenna in correct position.
